Product Code : EL-SAW-10631
Edulab China is a leading Signal Generator And Amplifier Lab Equipment Manufacturer,and suppliers in China, Signal Generator And Amplifier Lab Equipment Manufacturer,and suppliers in South Africa.Signal Generator And Amplifier Lab Equipment Suppliers in Mozambique,Signal Generator And Amplifier in Supplier Kenya, Southren African region, Botswana, Lesotho, Malawi, Angola, Namibia, Zambia, Zimbabwe. Djibouti, Ethiopia, Kenya, Madagascar, Mauritius, Rwanda, Seychelles, Tanzania and Uganda.

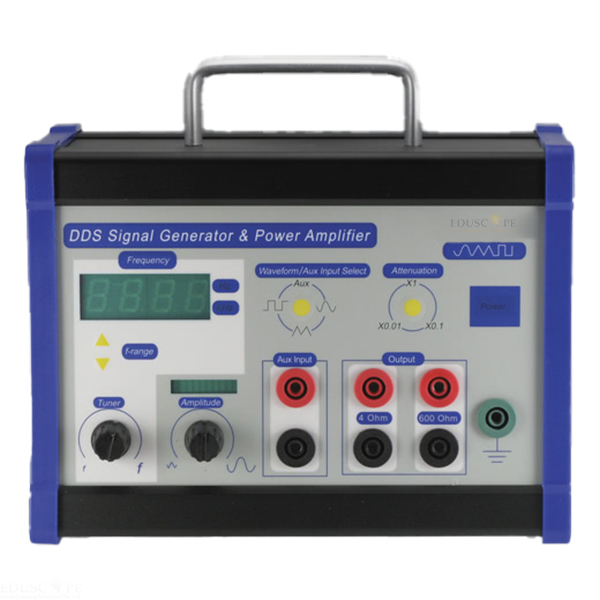

The earth provided is connected to the physical earth through the power cord; the signal generator output is floating with respect to ground. Do not open the unit as this will make your warranty void.
Edulab China Power supply unit with detachable power lead for easy storage
The Signal generator is a robust instrument and can withstand prolonged short circuit for the output.
Specifications:
High Impedance Output: Maximum 17V peak to peak from internal source impedance of 600ñ
Low Impedance output: 6V R.M.S. at 4ñ (about 8.8V peak for all waveforms)
Maximum Power output of 4.5W available over the entire frequency range for all waveforms.
Maximum Power Transfer occurs when the load is 4ñ, giving 62/(4+4) = 4.5W
Frequency Range: 0.1 Hz to 99.9 KHz in six decades, read on digital display.
Frequency Accuracy: 0.01% (100 ppm) in all ranges
Output waveform: Sine, Rectangular and Triangular
Amplifier voltage gain: 100
Frequency Response: DC to 100KHz, -3 dB, output power 4.5W into 4ñ load
Controls : All control settings except amplitude are stored and updated upon any changes.
Electric Supply: 220V~240V, 50Hz
Amplitude Control: Variable from zero to maximum output in 256 increments, amplitude is displayed by a 10 segment bar graph
Attenuation: x1, x 0.1, x0.01, ±1%, operating only on the 600ñ output.
Weight : Approx. 2.05kg , without power cord
Dimensions: approx. 210mm x155mm x 118mm L X W x D
