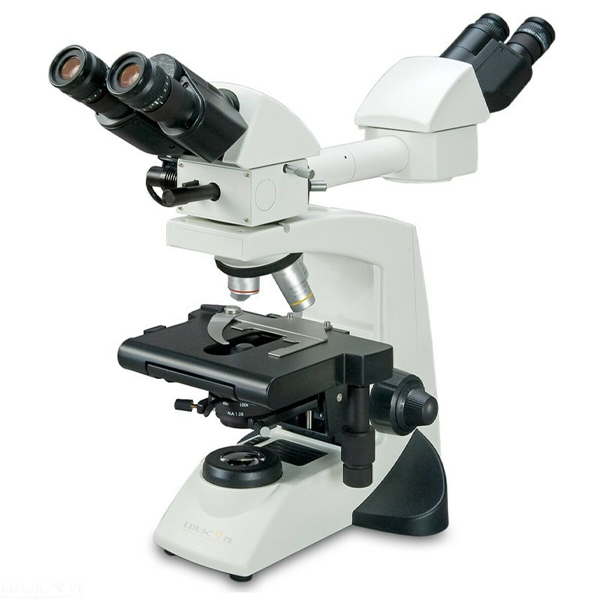

Binocular LED Dual View Teaching Microscope Manufacturer,Supplier and Exporter in China

Product Code : EL-TAMHM-11174

Edu Lab China is a leading Binocular LED Dual View Teaching Microscope Manufacturer,and suppliers in China, Binocular LED Dual View Teaching Microscope Manufacturer,and suppliers in China, Binocular LED Dual View Teaching Microscope Algeria (Algiers), Binocular LED Dual View Teaching Microscope Angola (Luanda), Binocular LED Dual View Teaching Microscope Argentina (Buenos Aires), Binocular LED Dual View Teaching Microscope Armenia (Yerevan), Binocular LED Dual View Teaching Microscope Australia (Canberra), Binocular LED Dual View Teaching Microscope Austria (Vienna), Bahrain (Manama), Bangladesh (Dhaka), Bhutan (Thimphu), Bolivia (Sucre), Botswana (Gaborone), Brazil (Brasília), Brunei (Bandar Seri Begawan), Montenegro (Podgorica), Morocco (Rabat), Mozambique (Maputo), Myanmar (Naypyidaw), Namibia (Windhoek), Nepal (Kathmandu), New Zealand (Wellington), Nigeria (Abuja), Oman (Muscat), Palestine (Ramallah), Panama (Panama City), Papua New Guinea (Port Moresby), Paraguay (Asunción), Peru (Lima), Philippines (Manila)¸ Portugal (Lisbon), Qatar (Doha), Rwanda (Kigali), Saudi Arabia (Riyadh), Senegal (Dakar), Serbia (Belgrade), Sierra Leone (Freetown), Slovakia (Bratislava), South Africa (Cape Town) (Pretoria) (Bloemfontein), South Sudan (Juba), Spain (Madrid), Sri Lanka (Sri Jayawardenepura Kotte) (Colombo), Sudan (Khartoum), Syria (Damascus), Tanzania (Dodoma), Thailand (Bangkok), Togo (Lomé), Tonga (Nuku'alofa), Trinidad and Tobago (Port of Spain), Tunisia (Tunis), Turkey (Ankara), Turkmenistan (Ashgabat), Uganda (Kampala), United Arab Emirates (Abu Dhabi), United Kingdom (London), United States (Washington, D.C.).

Specifications

Nosepiece: Reverse angle quadruple nosepiece (Ball bearing type) with click stops and rubber grip

Objectives: Series infinity corrected DIN Plan Achromatic objectives 4x, 10x, 40x (spring loaded), 100x (spring loaded, oil), antifungal

Stand: Single mold aluminum stand with hand rests for enhanced comfort and stability

Viewing Bodies:

Binocular head, 30° inclined, 360° rotatable, Interpupillary distance 48 - 75mm (main unit)

Dual view bridge with Binocular Observation Head, WF 10x/20mm eyepieces, illuminated LED pointer and 100V-240V AC power adapter (secondary unit)

Eyepiece: Widefield 10x/20mm focusable eyepieces with foldable rubber eye guards, antifungal. Accepts 26mm reticle.

Brand: Edulab China

Condenser: Sub stage Abbe condenser NA 1.25 with aspheric lens. Iris diaphragm with blue daylight filter. Rack and pinion movements on stainless steel guides

Focusing: Coaxial coarse and fine focusing on ball drive system for smooth operation

Illumination: LED (built in rechargeable battery) illumination with variable illumination control. Up to 100,000 hours of LED life

Electrical: Universal input 100V - 240V AC, 50/60Hz. Built-in voltage stabilizer

Mechanical stage: Rackless X axis, double plate stage size 200 x 160mm, X/Y travel range 78mm x 54mm. Low drive right hand movement controls. Hard coated surface for scratch resistance. Double specimen holder clip
